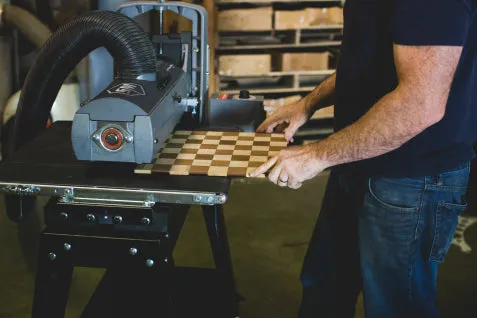

Perfect for the small shop or woodworking enthusiast, the SuperMax 19-38 Drum Sander reduces the tedium of hand sanding, speeds up the sanding process, and produces more consistent results!

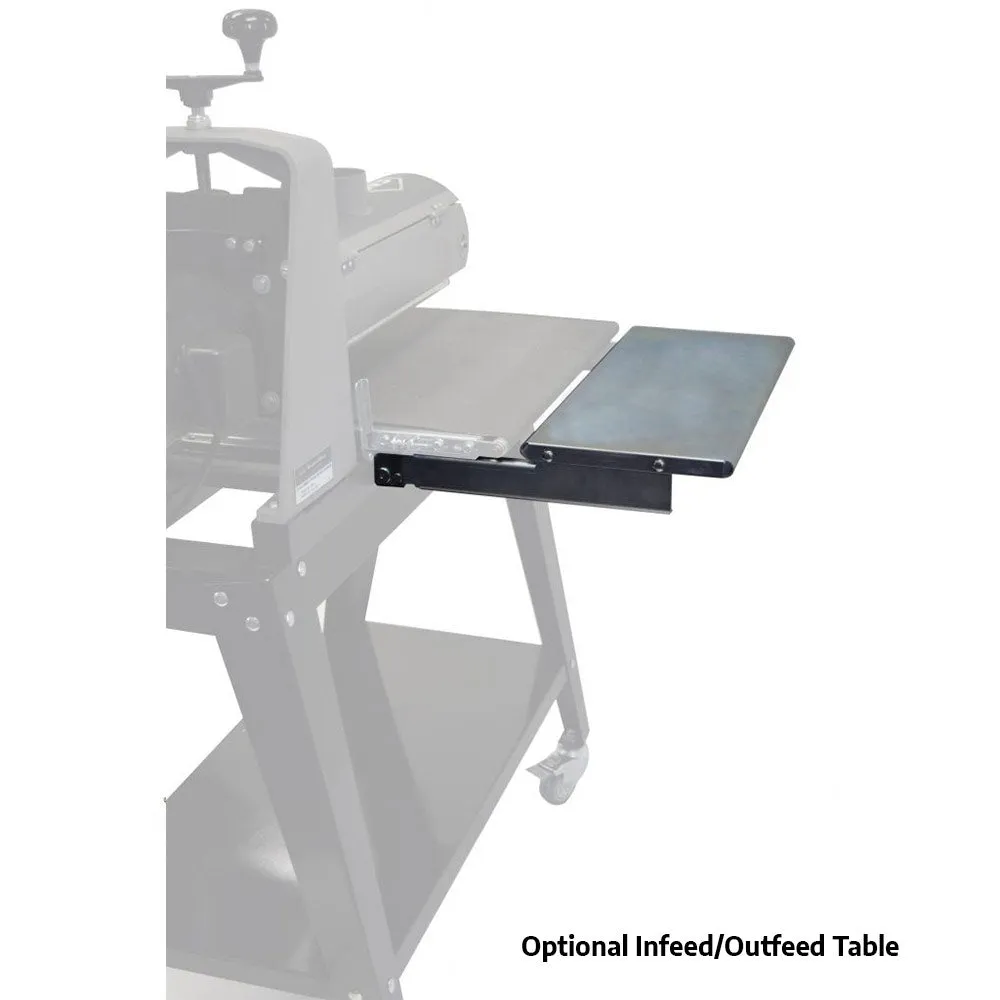

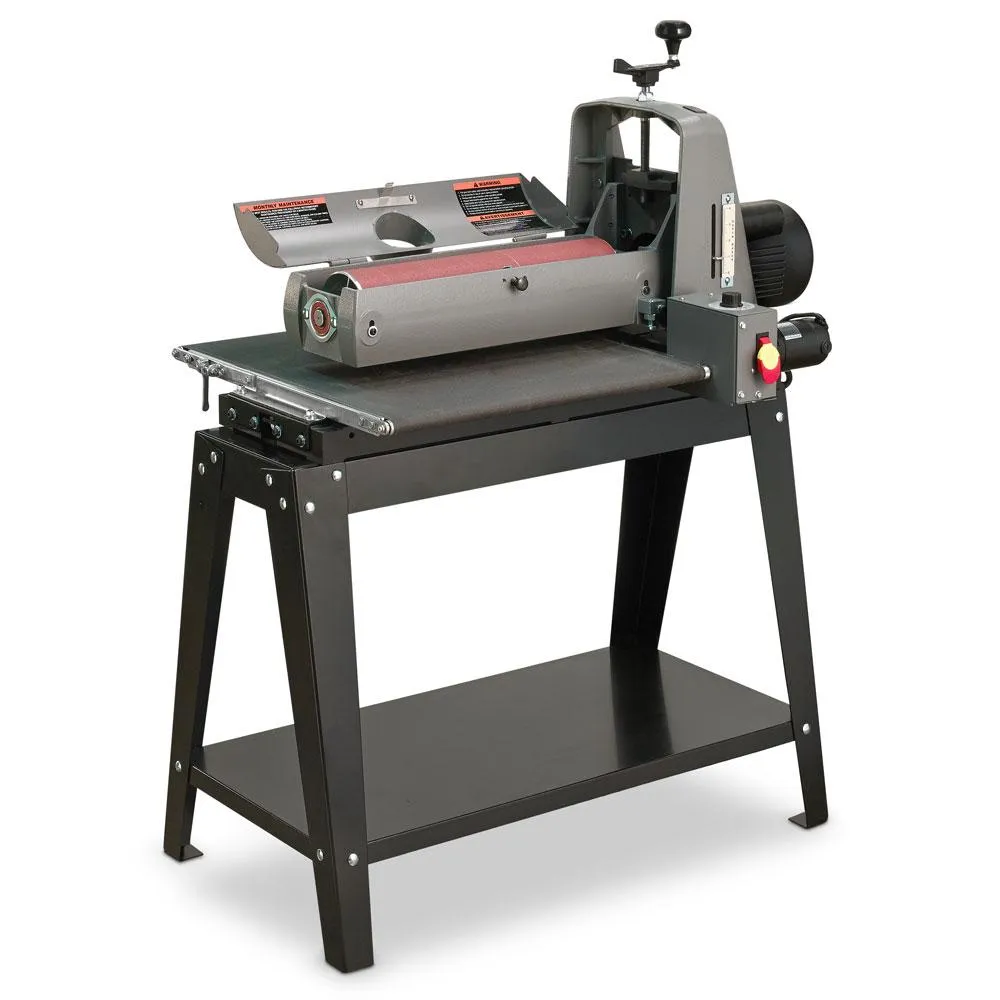

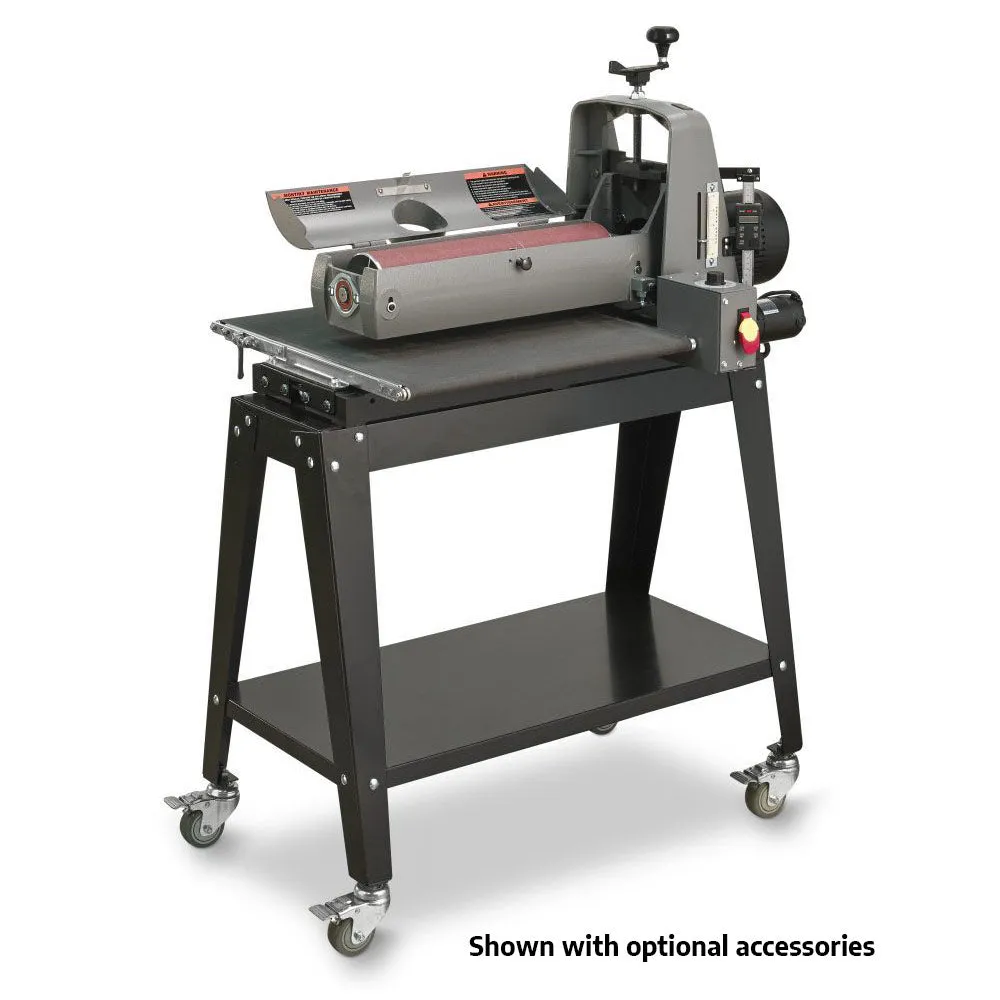

The 19-38 Drum Sander comes standard on the Open Stand. The drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are available for purchase.
All Laguna Tools woodworking machinery carry a 2-year warranty. Must machine within 30 days of purchase.
[TABS]
Features
SuperMax addressed issues common with other drum sanders by adding five features that are exclusive to their 19-38 machines. No other drum sander on the market has these features!

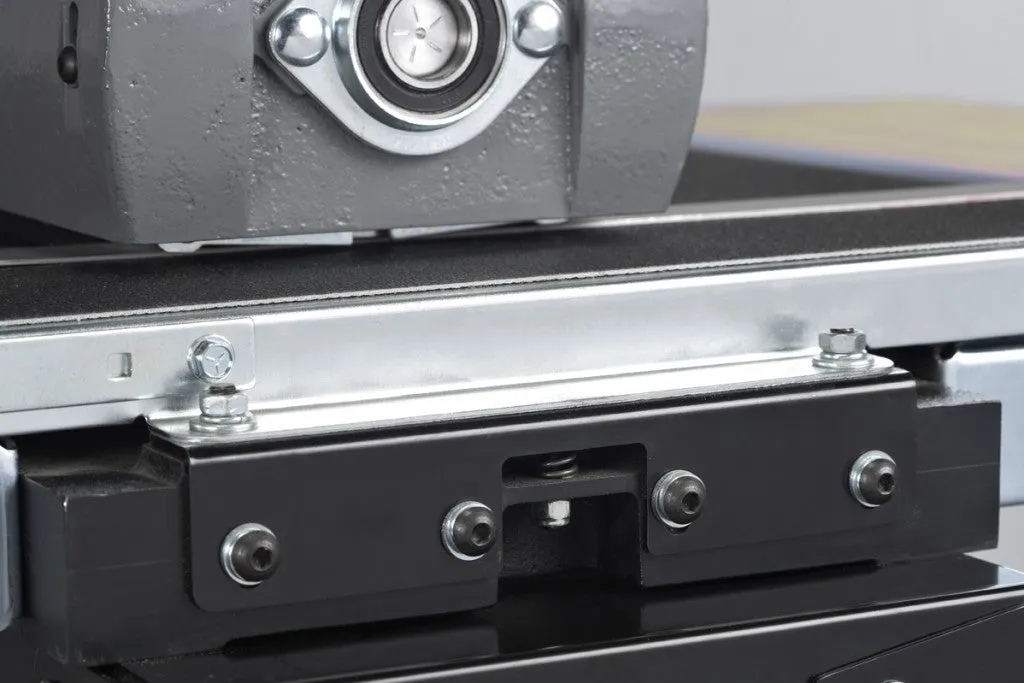

- Simple alignment feature: Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
- Indexed alignment setting: Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19”, the index lever will properly adjust the conveyor for flawless wide sanding.
- Easy height adjustments: A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments.
- Extra-wide conveyor to properly support stock over 19” wide. The conveyor table is 22” wide to add support to the work piece.
- Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues.
- INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load. Prevents gouging, damaging or burning stock. Provides consistent finish even with varying grain pattern and density. Greatly increases abrasive planing and dimensioning speed
- Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
- Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
- Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
- Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools.
- Self-cooling drum prevents overheating and extends abrasive life
- Tension rollers are adjustable in height and hold down pressure, eliminating snipe
- Excellent dust extraction as dust cover is formed to shape of drum. Metal, not plastic, is formed to maximize air flow and dust extraction
- Heavy-duty cast iron construction for strength, rigidity and reduced vibration
Specs
Sanding Capacity: Maximum Width: 38" (two passes); Minimum Length: 2-1/4"; Maximum Thickness: 4"; Minimum Thickness: 1/32"
Dimensions (D x W x H): 27" x 46" x 52" (on stand)
Drum: 5" x 19" extruded aluminum
Drum Speed: 1,740 RPM
Dust Hood: 1- 4″ vacuum port, min. 600 CFM recommended
Conveyor Motor: 43 in.-lb. torque, direct drive D.C. motor, ranged variable 0-10 FPM
Drive Motor (TEFC): 1-3/4hp
Power Requirements: 110 V, 15 amp
Shipping Weight: 286 lbs. (3 boxes incl. stand)
