Specifications:

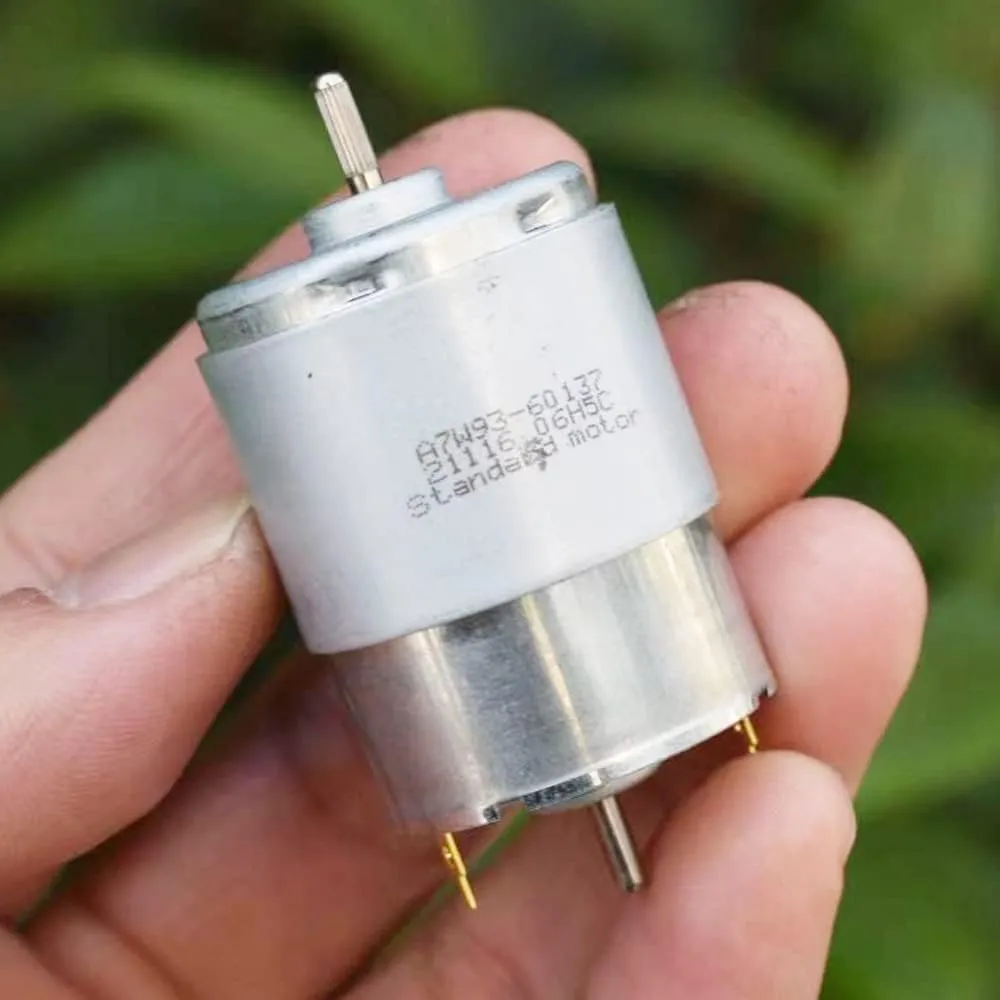

The brand-new Standard 385 motor, dual-axis, is suitable for installing an encoder, Generally, it is a precision micro motor used in precision office equipment.
Motor diameter: 29 MM
Motor length: 38 MM
Motor shaft diameter: 2.3 MM
Length of output shaft: front shaft 8 MM, rear shaft 7.5 MM
Weight: 90g
Voltage Applicable: DC 12-24V
Test parameters:
Voltage: 12V No-load current: 81MA No-load speed: 5200RPM
Voltage: 18V No-load current: 94MA No-load speed: 7900RPM
Voltage: 24V No-load current: 109MA No-load speed: 10500RPM
Power on the test machine, the motor current is not large, but the motor torque is strong, used for precision motors such as copiers and printers
Package includes:
1PCS * Motor
Item specifics:
Usage: BoAt,car,Fan,Home Appliance,copier printer
Model number: 385 motor
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: ROHS
Origin: Mainland China
Motor size: 38MM*29MM
Shaft diameter: 2.3mm
Voltage range: DC 12V/24V
Model: RS-385PH motor
Type: Micro Motor
