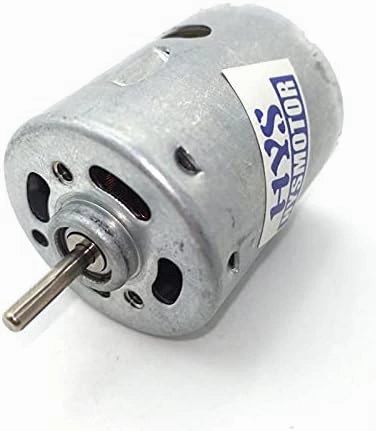

Motor diameter: 27.8mm
Motor length: 32.3mm
Output shaft: 2.3mm
Output length: 12.5mm
Screw hole: m2.5
Screw hole distance: 16mm
Rated voltage: DC15V
Current: 0.88A
Speed: 12500rpm
Measure no-load speed and no-load current under different voltages
DC12V 11300rpm 0.11A
DC15V 14200rpm 0.13A
DC12V 17500rpm 0.16A
Item specifics:
Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance
Model number: RS365 high speed DC 12V motor
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: CCC,ce,ROHS
Origin: Mainland China
Voltage: DC 12V 15V 18V
Dc12v: 11300rpm 0.11A
Dc 15v micro metal moters: 14200rpm 0.13a
Dc18v: 17500rpm 16ma
Mini dcmotor: Can reversed CW CCW
365 motor: can adjustable Speed
