Specification:
Buying tip: Model A motor is 2mm round shaft, Model B motor is 2.05mm splined shaft.

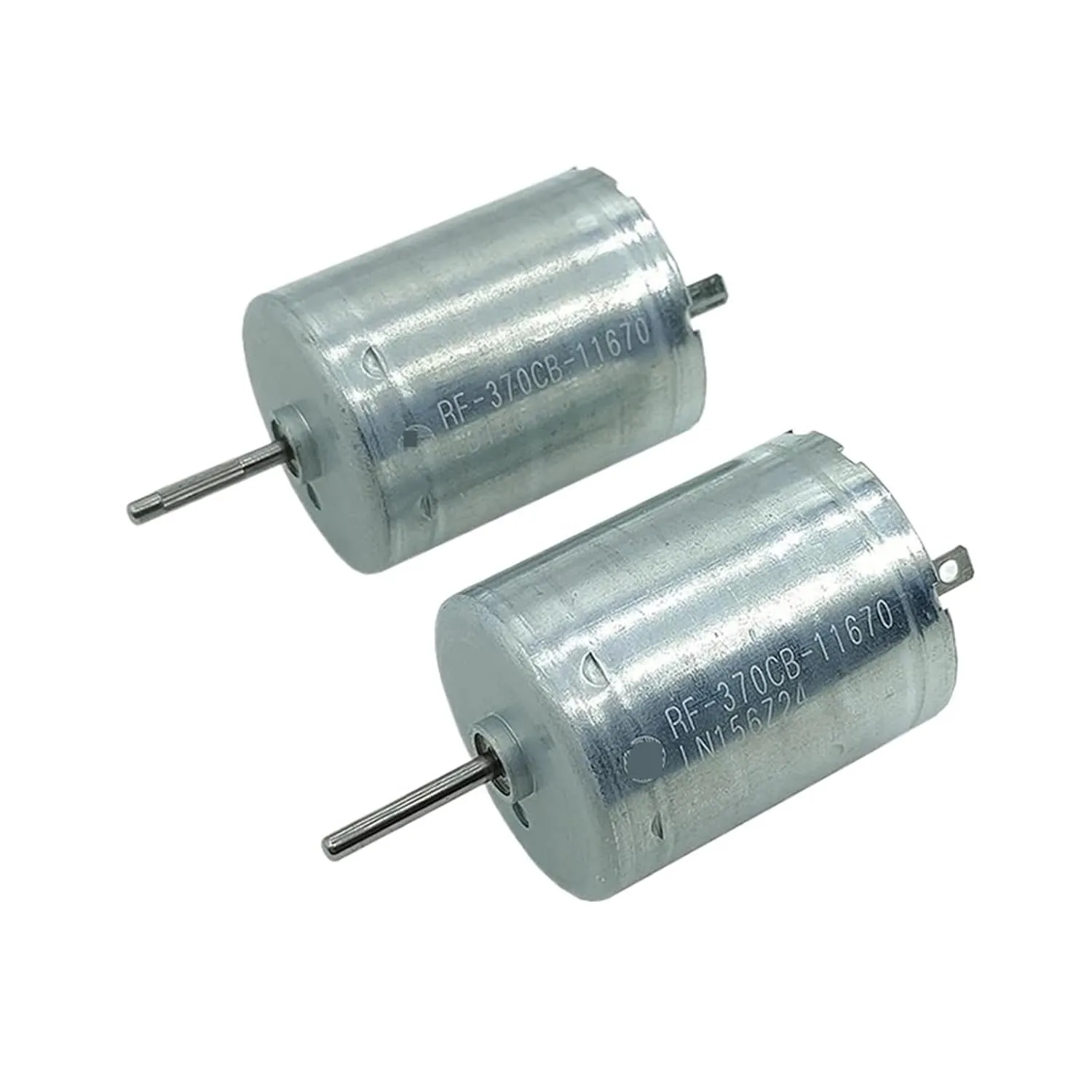

RF-370CB-11670 precious metal brush DC motor, suitable voltage is DC 12V-24V, speed range is 3000RPM-6000RPM. Commonly used in various digital appliances, air conditioning deflector motors for automobile parts, on-board AV equipment and so on. This motor is used on auto parts, so its panel has no screw holes, and it is fixed by the clamp.
Model: RF-370CB-11670 (Precious metal brush)
Motor size: 24.4mm*30.9mm
Output shaft diameter: Model A: 2.0mm; Model B:2.05mm
Output shaft length: 15mm (include step height)
Weight: 54g
Suitable voltage: DC 12V-24V
Test data:
Voltage:12V No-load speed:3000RPM No-load current:7mA
Voltage:18V No-load speed:4500RPM No-load current:17mA
Voltage:24V No-load speed:6000RPM No-load current:36mA
Package List:
Motor x 1PCS

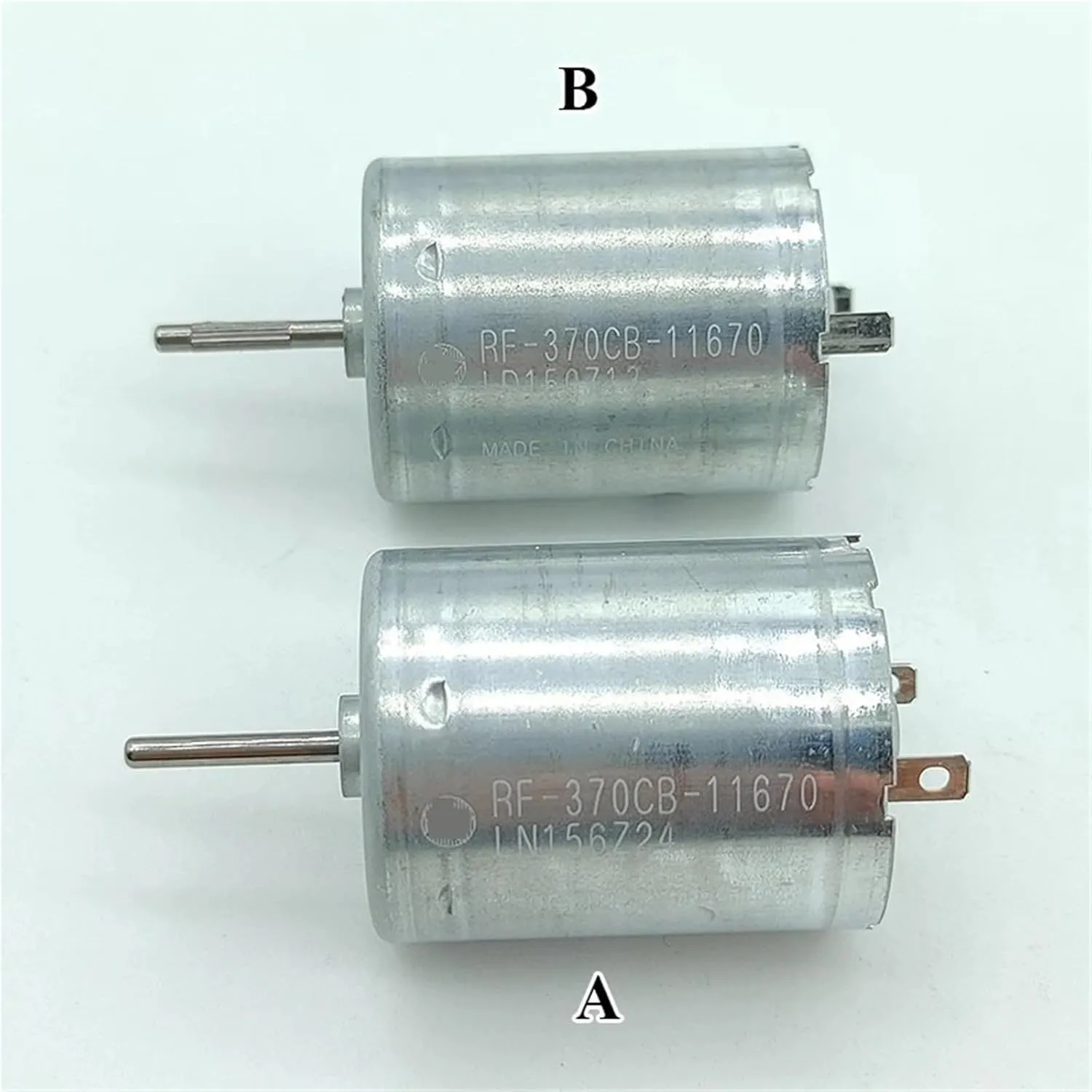

Model A motor:
Model B motor:
Model Number : Mini RF-370 Motor
Construction : Permanent Magnet
Type : Motor
Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Model number : RF-370CB-11670
Motor size : 24.4mm*30.9mm
Suitable voltage : DC 12V-24V
Speed range : 3000RPM-6000RPM

• Package Dimensions ‏ : ‎ 1.18 x 0.79 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ December 7, 2024
• Manufacturer ‏ : ‎ SOSODBBM
• Country of Origin ‏ : ‎ China
