- [WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R4SE mini wifi router can support external USB wifi adapter. Simultaneous dual band with wireless speed 150Mbps(2.4G 433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing
- [Open Source and Programmable] NanoPi R4SE wifi router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more

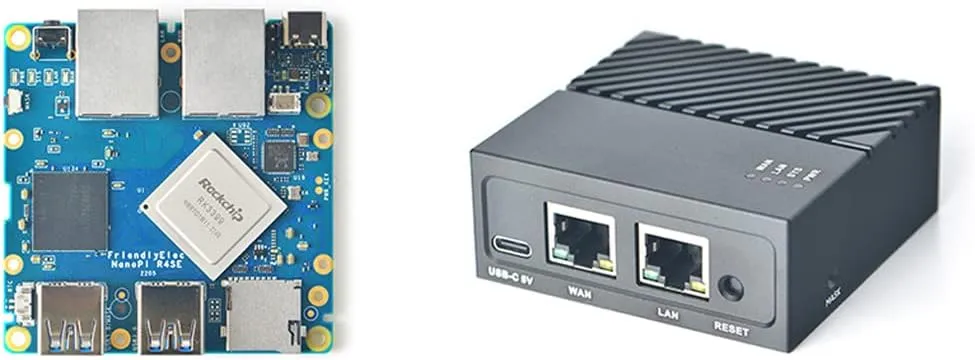

- [High Performance Chip] NanoPi R4SE wireless portable wifi router onboard Rockchip RK3399 64-bit Dual Core Cortex-A72 Quad Core Cortex-A53 CPU; GPU: Mali-T864 GPU, Supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
- [DUAL GBPS ETHERNET PORTS] The NanoPi R4SE computer wifi router has Dual 2.5Gbps Ethernet ports: one directly extended from the SoC and the other one converted from a PCIe.gets around 934Mbits/second download and upload
- [LARGER STORAGE & EXTENSIBILITY] NanoPi R4SE wireless mini wifi router onboard 4GB RAM LPDDR4 & 32GB eMMC, up to 128GB MicroSD slot; USB3.0 Host x2: USB Type A; Serial Debug Port x1: 2.54mm pitch 3pin-header, 3V level,1500000bps; Support USB-C, PD x1: Power Input supply; One Native Gigabit Ethernet and PCIe Gigabit Ethernet ports (1 WAN and 1LAN)
- [USER MANUAL] Wiki:“youyeetoo.com/blog/nanopi-r4se-ysdpr4senomac-187".Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click ''forum.youyeetoo.com/'' and ask a question
-Specification-
CPU: Rockchip RK3399
Number of Cores: 64-bit Dual Core Cortex-A72 Quad Core Cortex-A53
Frequency: Cortex-A72(up to 2.0GHz) Cortex-A53(up to 1.5GHz)
GPU: Mali-T864 GPU, supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
Memory RAM: 4GB LPDDR4
Storage Flash: 32GB eMMC (KLMBG2JETD-B041)
MicroSD Slot: MicroSD x1 for external storage up to 128GB
Power Management : RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
Connectivity Ethernet: Native Gigabit Ethernet x1
PCIe Gigabit Ethernet ：x1
USB: USB 3.0 Host x 2 ：USB Type A; USB 2.0 Host x1: 2.54mm 4pin-header
Power Input Only: Type-C x1
Fan: 5V Fan connector
Working Temperature: -20℃ to 70℃
Power: DC 5V/3A, via USB-C connector or Pin header
-Dimension-
PCB: 8 Layer
Dimension: 68x94.5x30 mm (with Case)
Weight: 260g（with Case)
-OS Support-
FriendlyCore Focal Lite (Base on Ubuntu 20.04) (Linux-4.19.111 U-boot-2017.09)
FriendlyWrt 21.02.1 (64-bit)
-Package Content-
1x Nanopi R4SE 4GB 32GB eMMC Mini Router- With CNC Metal Case
