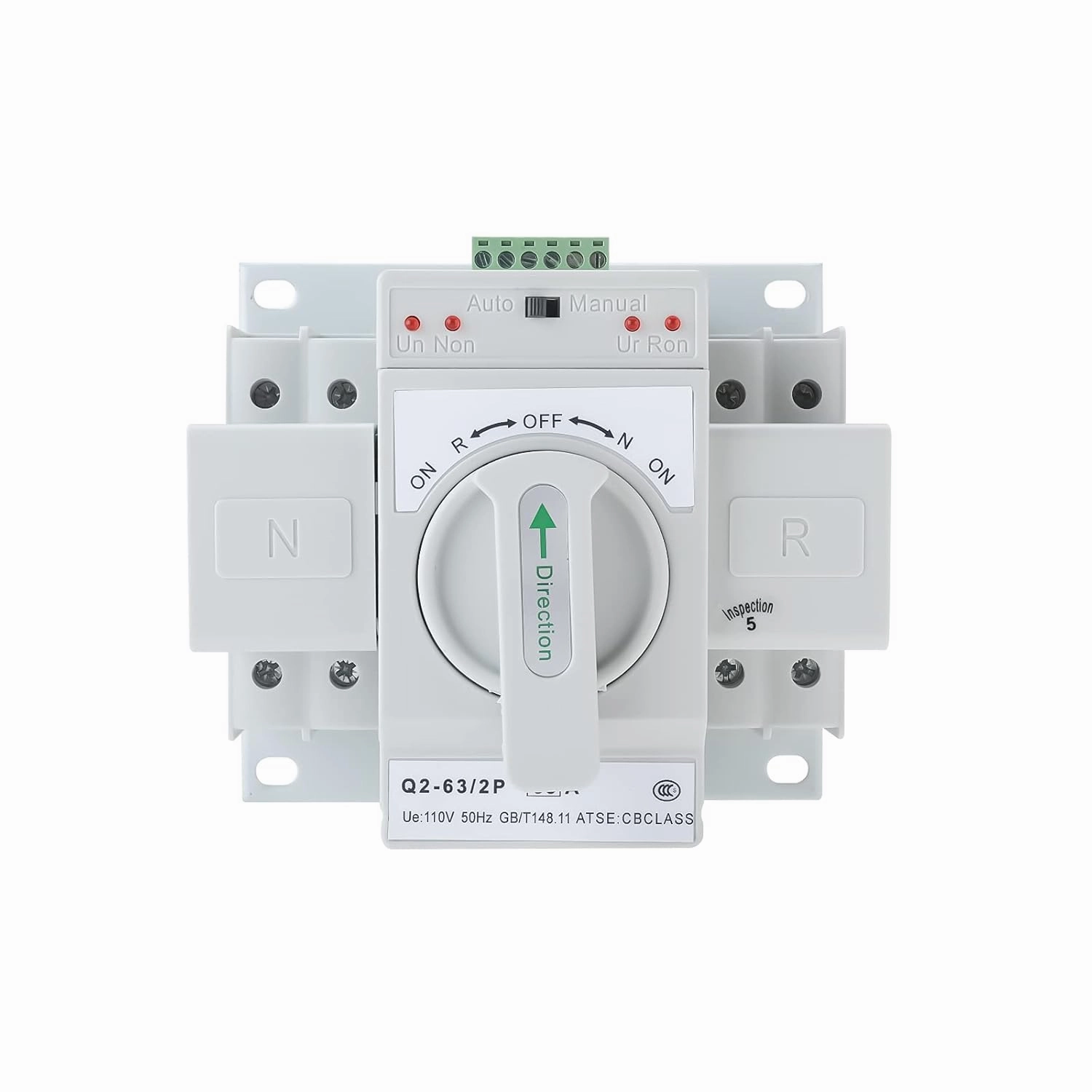

- The automatic transfer switch supports automatic mode, it also can be operated by manual buttons, very easy and simple to operate.
- The transfer switch is mainly used to test whether the power supply is normal or not, to judge the power supply continuity, reliability and safety.
- Dual power automatic transfer switch is mainly composed of two miniature circuit breakers, motors. The switch controller is composed of a mechanical rotating device.
- There are three states of switch operation for users to choose: common power (N combination), double(manual) and standby power.
- The transfer switch fits for AC 50HZ/60HZ, rated voltage 400V, rated current under 63A three-phase four-wire (or one-phase first-line) dual power grid.
Specification:
ATS Level : CB Level
Using the Categories : AC-33iB
Rated Operating Voltage : AC110V/400V
Rated Working Current : 63A
Circut Breaker Pole Number : 2
Rated Operating Frequency : 50Hz/60Hz
Electrical Life : 1500 Time
Conversion Mode: Self Cast
Installation Dimension : 5"x4.8"(128mm x 122mm)
Shape Size : 6" x 5.4" x 4.6" (150mm x 137mm x 118mm)
Package Includes:
1 x Dual Power Automatic Transfer Switch
1 x English User Manual
- Package Dimensions : 7.6 x 7.36 x 5.98 inches; 3.11 Pounds
- Date First Available : May 6, 2021
- Manufacturer : CHENTAITRADING
