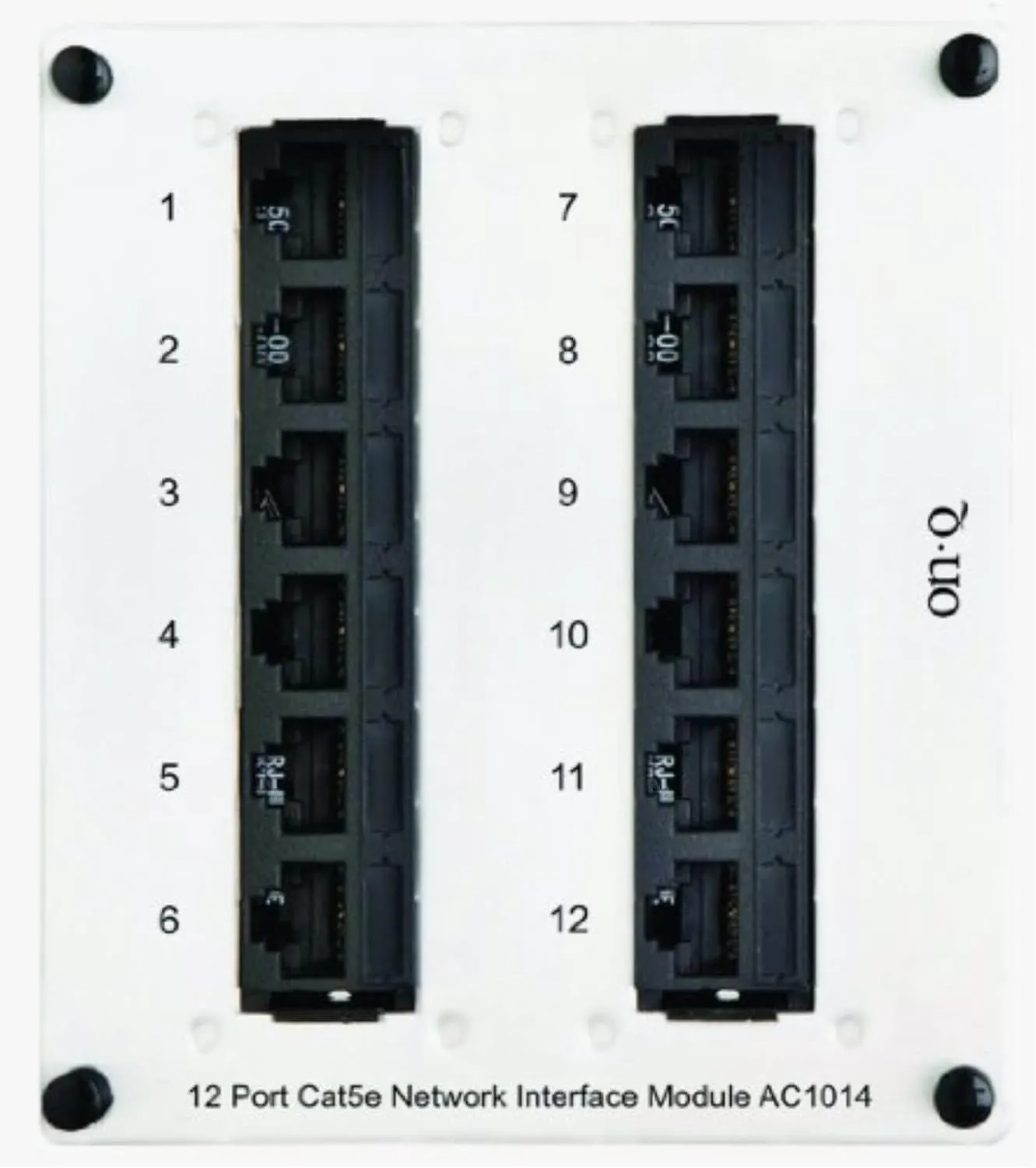

- NETWORK INTERFACE MODULE: 12 port Cat 5e network interface module has high density mini patch panel.
- SWITCH BETWEEN DATA AND VOICE APPLICATIONS: Easily switch an outlet from Voice to Data or from Data to Voice with this Cat 5e Network Interface Module.
- CAT5e SPECIFICATION: It meets Cat5e specifications and RJ45 ports are labeled 1 thru 12.
- AVAILABLE SIZE: The network module has two different size – 6 port, 12 port.
- AVAILABLE STYLE: It has two different specification – Cat 5e, Cat 6
With the On-Q/Legrand Cat5e Network Interface Module, 12 Port you can conveniently change an outlet from voice to data or from data to voice. The module features a high-density mini patch panel with 12 numbered RJ45 ports. It easily switch an outlet from Voice to Data or from Data to Voice with this Cat5e Network Interface Module.
General info
Cable Type: Cat 5e
Color: Platinum Grey
Finish: Powder Coat
Footprint: Double Bay
Connection Type: RJ45 and IDC Punchdown Block
Type: Network Interface
Input Plug Type: RJ45 Male
Assembly/installation information
Mounting Hardware Included: Plungers/Grommets
Listing agencies/third party certifications
UN SPSC: 43223309
Construction information
Spec 1: Cable
Dimensions
Depth (Metric): 5.2 cm
Depth (US): 2.1"
Height (Metric): 15.2 cm
Height (US): 6"
Width (Metric): 15 cm
Width (US): 5.9 in
Overall Dimensions (US): "6"" H x 6.5"" W"
Cord information
Connector Type End One: RJ45
Connector Type End Two: IDC Punchdown
Technical information
Material: 18 Gauge Cold Rolled Steel
Mounting: Enclosure
Shape: Rectangular
Receptacle Type: RJ45 Female
Number Of Receptacles: 12
