Motors
Specification:
Tips: 2pcs mean 1pcs CW 1pcs CCW.

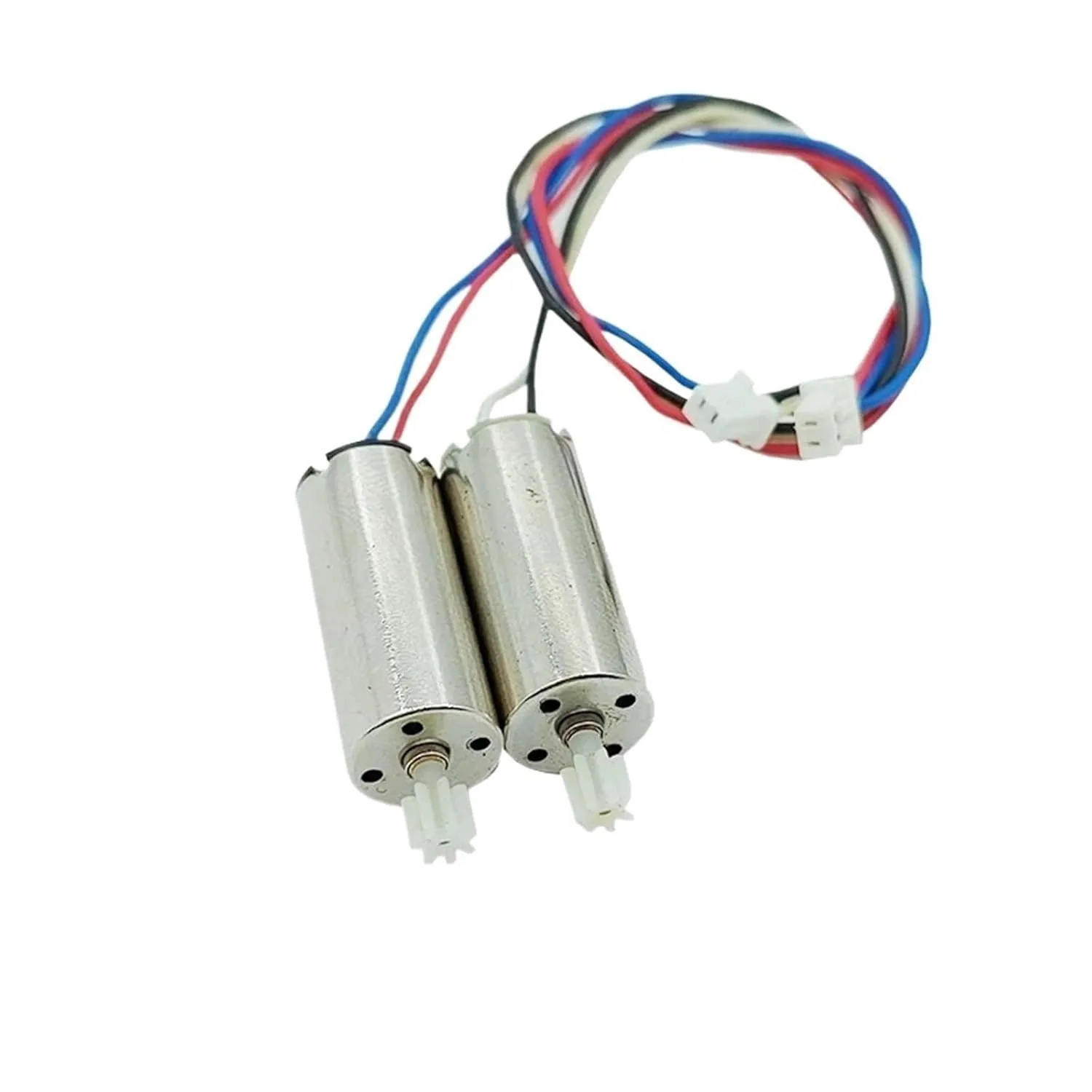

1. Model: 8520 Mini Coreless Motor
2. Motor diameter: 8.5mm
3. Motor length: 20mm
4. Output shaft diameter: 1.0mm
5. Output shaft length: 5mm
6. Cable length: about 100mm
7. Test data:
Voltage: DC 5.0V No-load current: 60mA No-load speed: 31800RPM
Voltage: DC 6.0V No-load current: 60mA No-load speed: 38000RPM
Package List:
CW Motor x 1PCS CCW Motor x 1PCS
Usage : Home Appliance
Model Number : 8520
Construction : Permanent Magnet
Type : Motor
Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Model : 8.5mm*20mm Coreless Motor
Motor diameter : 8.5mm
Motor length : 20mm
Output shaft diameter : 1mm
Output shaft length : 5mm

• Package Dimensions ‏ : ‎ 1.18 x 0.79 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ December 7, 2024
• Manufacturer ‏ : ‎ SOSODBBM
• Country of Origin ‏ : ‎ China
