Motors
There are two model motors, model A is FS-130CN-22100 (yellow back cover), model B is FP-130CN-21100 (white back cover); please buyers select the suitable one motor you need. Thanks.
Motor size: 20mm*15mm
Motor height: 25mm
Output shaft diameter: 2.0mm
Output shaft length: 11.2mm (include step height)
Weight: 20g

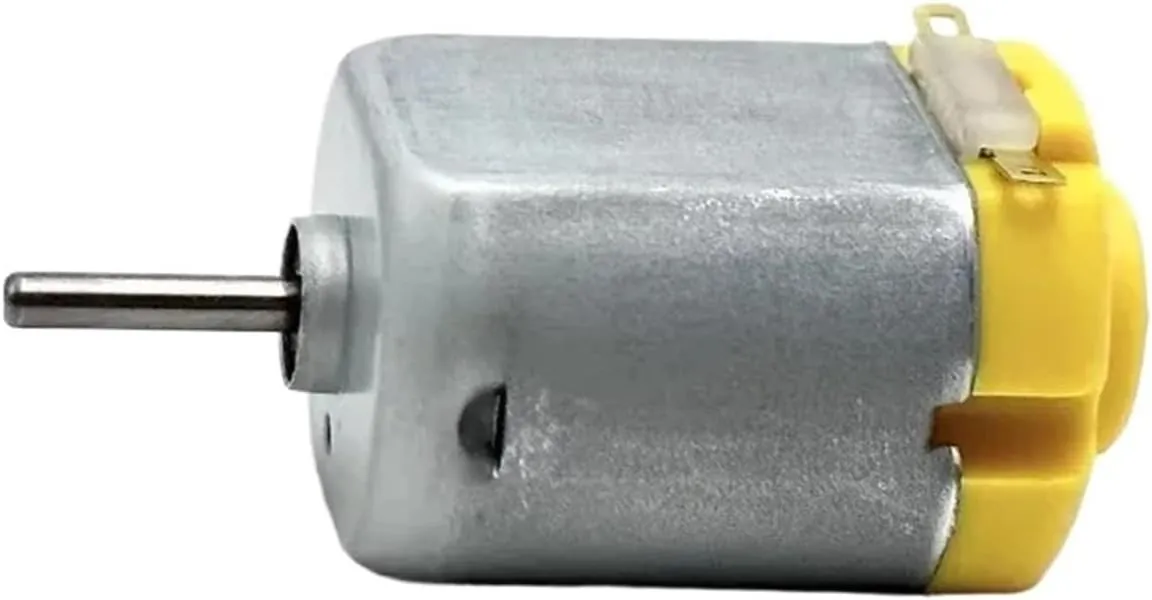

Model A: FS-130CN-22100 (Yellow back cover)
1.Suitable voltage: DC 3.0V-5.0V
2.Test data:
Voltage:3.0V Current:170mA No-load speed:9300RPM
Voltage:3.7V Current:185mA No-load speed:11500RPM
Voltage:5.0V Current:200mA No-load speed:15500RPM
Model B: FP-130CN-21100 (White back cover)
1.Suitable voltage: DC 3.0V-5.0V
2.Test data:
Voltage:3.0V Current:160mA No-load speed:9700RPM
Voltage:3.7V Current:175mA No-load speed:12000RPM
Voltage:5.0V Current:185mA No-load speed:16500RPM
Usage : Home Appliance
Model Number : Mini 130 Motor
Construction : Permanent Magnet
Type : Micro Motor
Protect Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Motor size : 20mm*15mm
Motor height : 25mm
Output shaft diameter : 2.0mm
Weight : 20g
Suitable voltage : DC 3.0V-5.0V
