Motors
Specification:

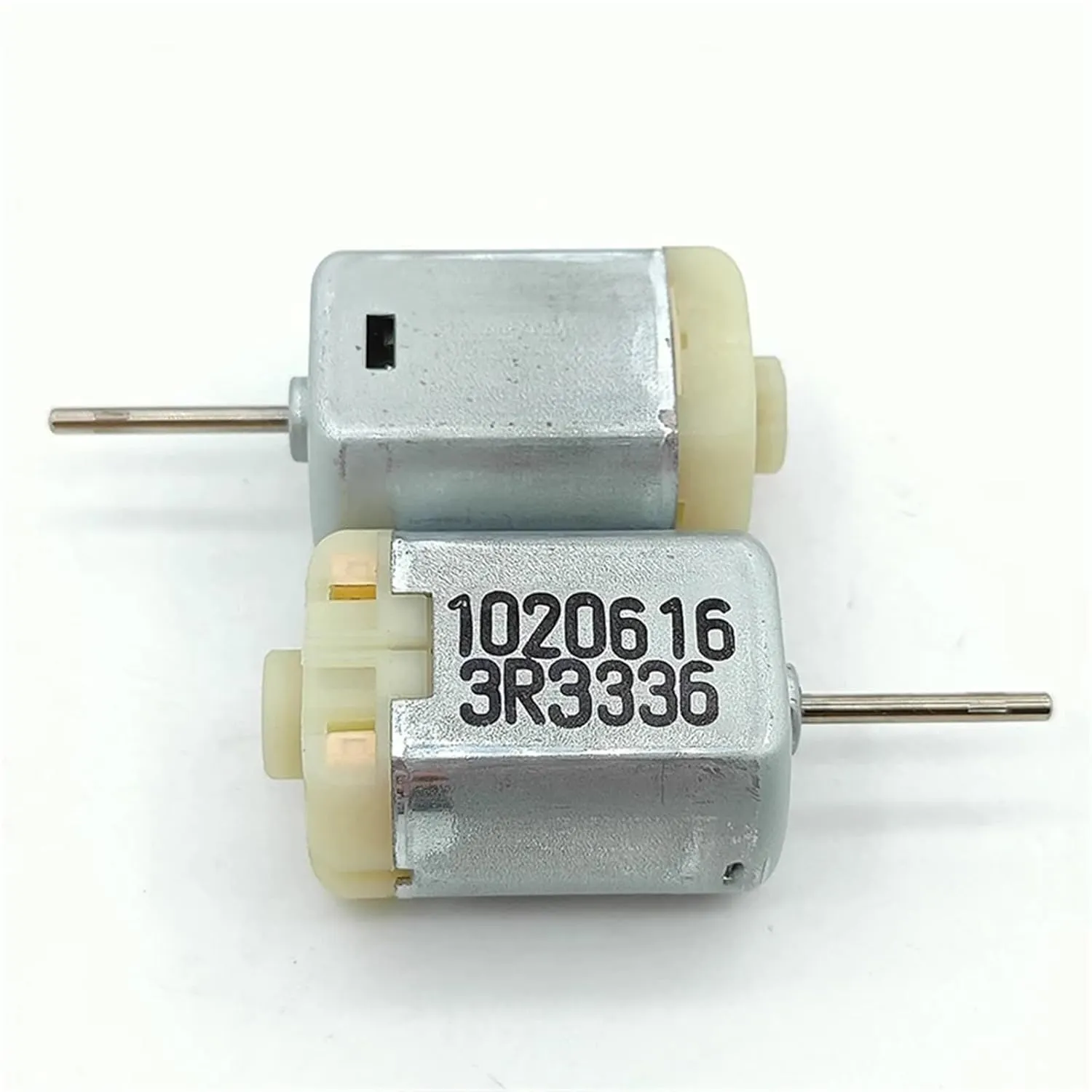

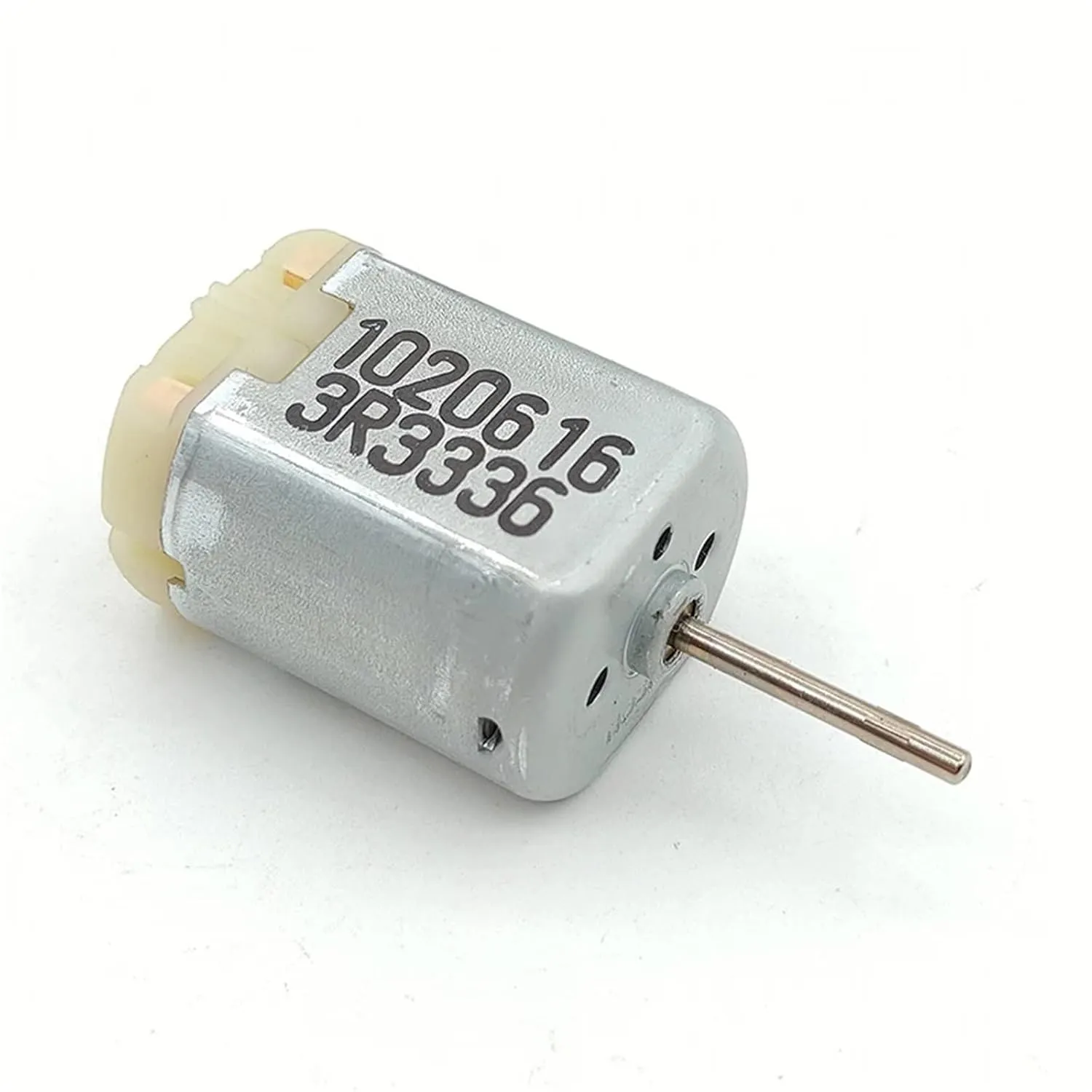

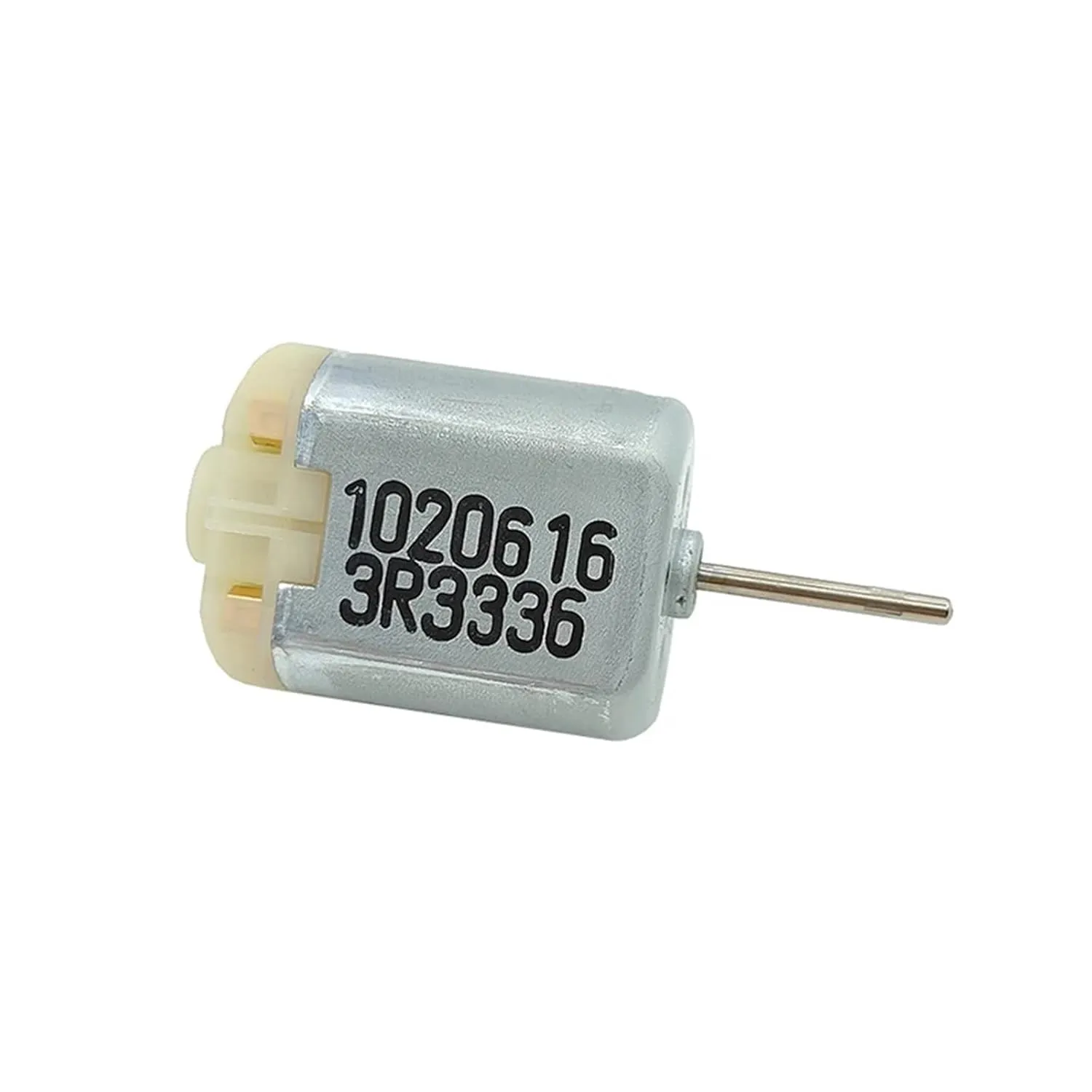

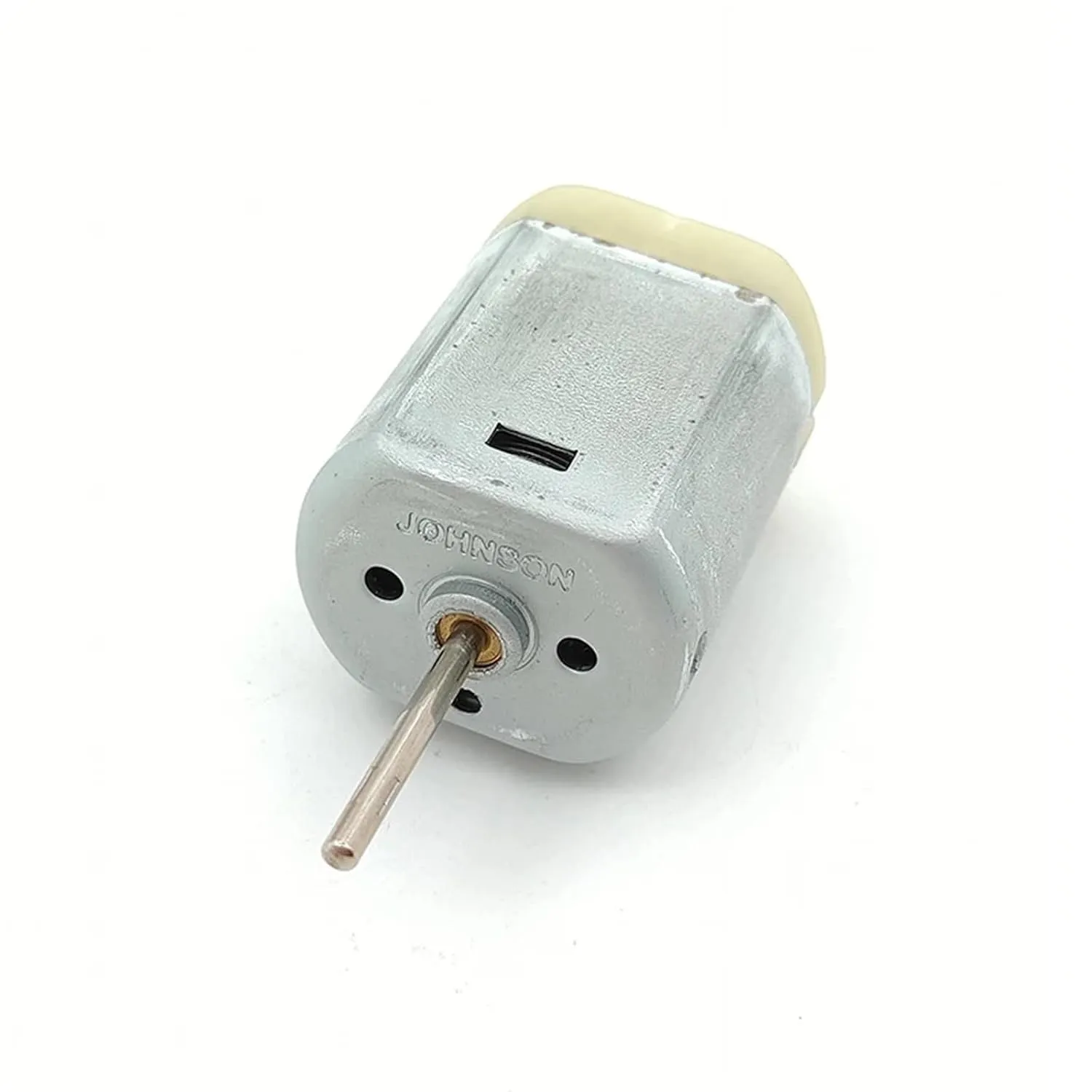

Model number: 1020616 FC-280SC-20150
Motor size: 24mm*18.3mm*30.5mm
Output shaft diameter: 2mm
Output shaft length: 17mm
Weight: 37g
Rated voltage: DC 12V
No-load current: 13mA
No-load speed: 3500RPM
Suitable voltage: DC 8V-16V
Rotation: CCW
Tips: The conductive position of the motor
Usage: Automotive electric motors, such as central locking, locking motor, electric folding rearview mirror, door lock, steering angle limiter, etc
Package List:
Motor x 1PCS
Usage : CAR
Model Number : Mini 280 Motor
Construction : Permanent Magnet
Type : Motor
Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Model number : 1020616
Motor size : 24mm*18.3mm*30.5mm
Output shaft diameter : 2mm
Rated voltage : DC 12V
No-load speed : 3500RPM

• Package Dimensions ‏ : ‎ 0.39 x 0.39 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ May 27, 2025
• Manufacturer ‏ : ‎ CXYFQUUK
• Country of Origin ‏ : ‎ China
